TE Connectivity AMP Connectors 282815-3 — Pin Headers, Sockets & Housings

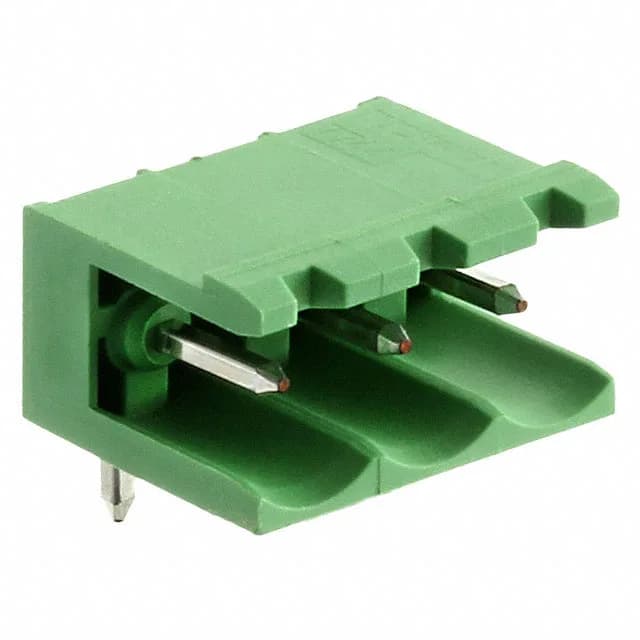

282815-3 TE Connectivity Buchanan Header, 3 Pos

MPN282815-3
Active

TE Connectivity AMP Connectors Buchanan series, Header, Male Pins, Shrouded (2 Side), 3 positions, 0.200" (5.08mm) pitch, 1 level, right-angle orientation, through-hole solder termination, tin contact mating finish, UL94 V-0, green housing, active production.

$0.4229Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 282815-3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282815-3 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (2 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.329\" (8.36mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

282815-3 additional specifications
ParameterValue
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions3
Positions per level3
Contact mating finishTin

Product details

0.200" Pitch, 3-Position Right-Angle Header for Board-Edge Routing

The 282815-3 is a 3-position, single-level shrouded header from TE Connectivity's Buchanan series, on a 0.200" (5.08mm) pitch. The 0.200" pitch gives each contact enough spacing to keep the temperature rise within the PA66 housing limit at full current. The side-stacking feature lets multiple 282815-3 headers interlock side-by-side without extra brackets, building wider multi-row arrays from a single part number.

The UL-rated 15 A per contact at 300 V defines the continuous power ceiling.

Termination is through-hole solder, with a contact tail length of 0.138" (3.50mm) — sufficient for standard 1.6mm PCBs with through-hole plating.

Supplied in bulk packaging.

Frequently asked questions

What is the current rating of 282815-3?

The UL-rated current is 15 A per contact at 300 V. The tin contact finish and PA66 housing support this rating in clean, dry environments with moderate mating cycles.

What is the closest alternative to 282815-3?

The 282815-3 is the standard 3-position, 0.200" pitch, right-angle shrouded header.
