6-circuit Buchanan shrouded header
The 282822-6 is the 6-circuit member of TE's Buchanan series of shrouded (2-side) pin headers. Rated 15 A at 300 V with tin-plated mating contacts, the header mounts through-hole vertical and terminates by solder.

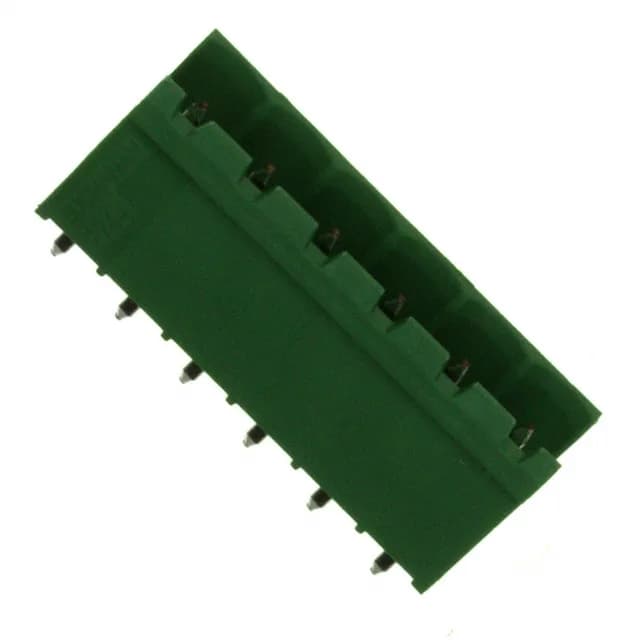

282822-6 TE Buchanan Header, 6 Pos, 5.00mm, Tin
MPN282822-6
Active
TE Connectivity AMP Connectors Buchanan header, order code 282822-6, 6 positions, single level, 5.00 mm pitch, 15 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
$2.7800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
