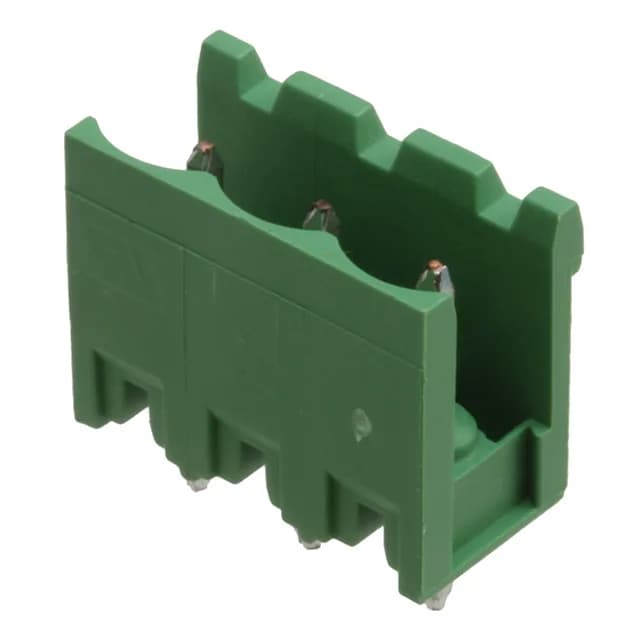

TE Connectivity Buchanan header, order code 282824-3, 3 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 282824-3 is the 3-position member of TE's Buchanan shrouded header line, terminated through-hole vertical with solder tails.
The interlocking side feature allows multiple 282824-3 headers to be ganged side-by-side into a multi-position assembly, sharing the same 0.200" (5.08mm) pitch across the combined block.
The listed type is Header, Male Pins, Shrouded (2 Side).
