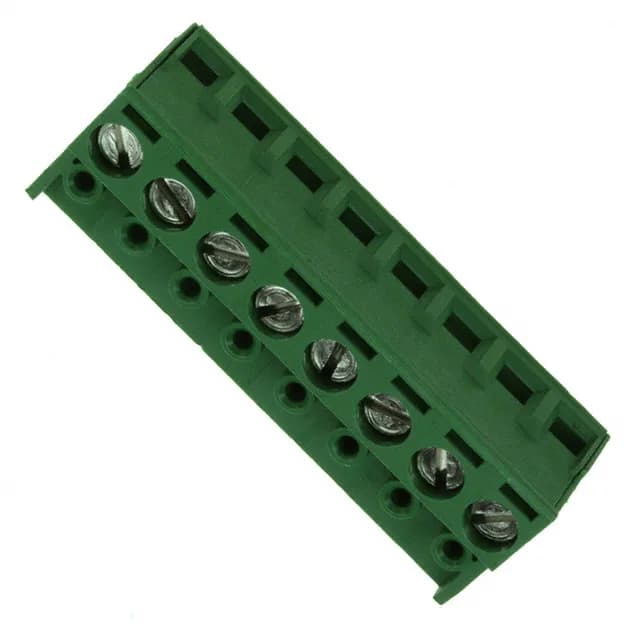

TE Connectivity Buchanan plug for unshrouded header, order code 282830-8, 8 positions, single level, 5.00 mm pitch, 12 A, 300 V, tin-plated phosphor bronze contacts, screw rising cage clamp termination, free hanging, 90° wire entry, green housing.
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.453\" (11.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.68 Nm (6 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The 282830-8 is the 8-circuit member of TE's Buchanan plug series, a free-hanging plug for unshrouded headers with a 5.00 mm pitch and single-level layout. Rated 12 A at 300 V with tin-plated phosphor bronze contacts, the plug accepts 12-30 AWG (0.05-2 mm²) wire via a screw rising cage clamp.
Side stacking allows ganging multiple plugs on adjacent header positions without increasing the wiring footprint.
The screw rising cage clamp accepts 12-30 AWG (0.05-2 mm²) solid or stranded wire with a 6-7.5 mm strip length.
