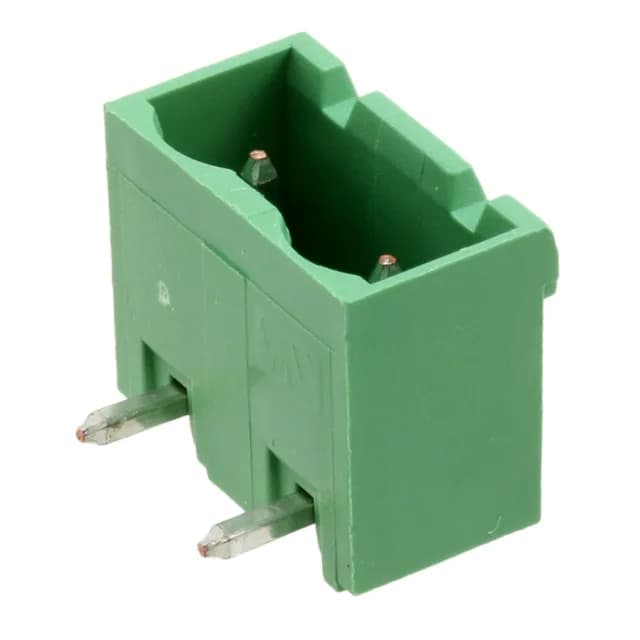

TE Connectivity Buchanan header, order code 282966-2, 2 positions, 1 level, 0.300" (7.62mm) pitch, 15 A, 300 V, tin-plated male pins, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 282966-2 is a 2-circuit shrouded header from the TE Buchanan series, designed for wire-to-board termination with a 0.300" (7.62mm) pitch. Rated 15 A at 300 V with tin-plated mating contacts, the header mounts through-hole at a 90° right-angle orientation and terminates via solder.
The 282966-2 is a Header, Male Pins, Shrouded (4 Side) and is colored Green.
