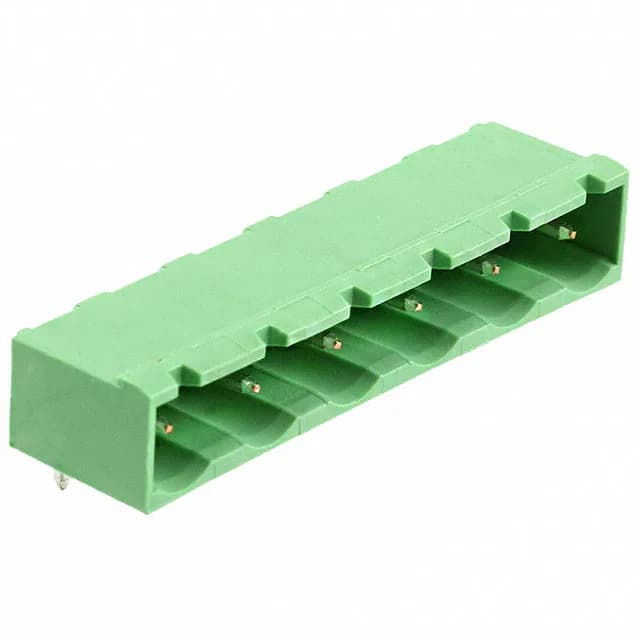

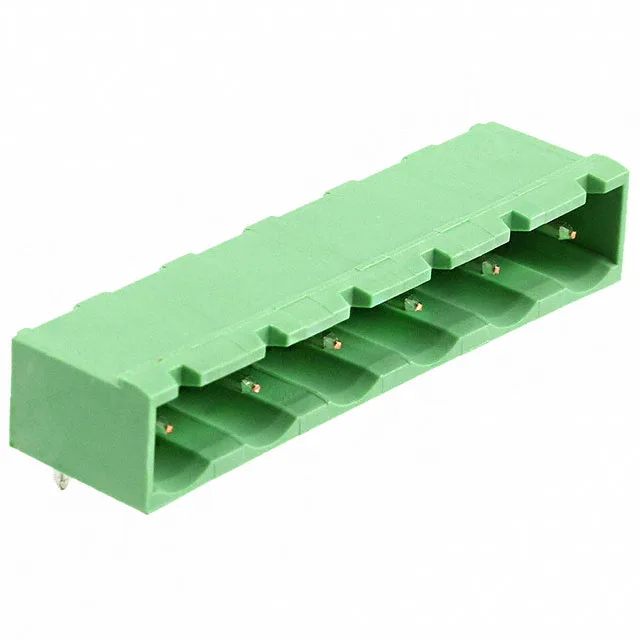

TE Connectivity AMP Connectors Buchanan series, 282966-6, Header, Male Pins, Shrouded (4 Side), 6 positions, 0.300" (7.62mm) pitch, right-angle through-hole, solder termination, 15 A, 300 V, UL94 V-0, -40°C ~ 110°C.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 282966-6: The 0.300" (7.62mm) pitch sets a wide board footprint that eases routing for higher-current traces — the 15 A per-contact rating is backed by the UL94 V-0 PA66 housing, which keeps the temperature rise within limits at full load.
The pitch is 0.300" (7.62mm).
The contact mating finish is tin. RoHS compliance is standard for this series; confirm with the manufacturer's compliance documentation for your specific application.
