TE Connectivity AMP Connectors Buchanan plug, order code 284041-8, 8 positions, single level, 5.08 mm pitch, 15 A, 300 V, tin-plated mating contacts, free-hanging, screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The 284041-8 is the 8-position, single-level member of the TE Buchanan plug series, terminated via a screw-driven rising cage clamp that accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire.
Retention latches on the non-wire side hold the plug in the mating header; the M3 screw size is shared across the Buchanan series for consistent tooling.

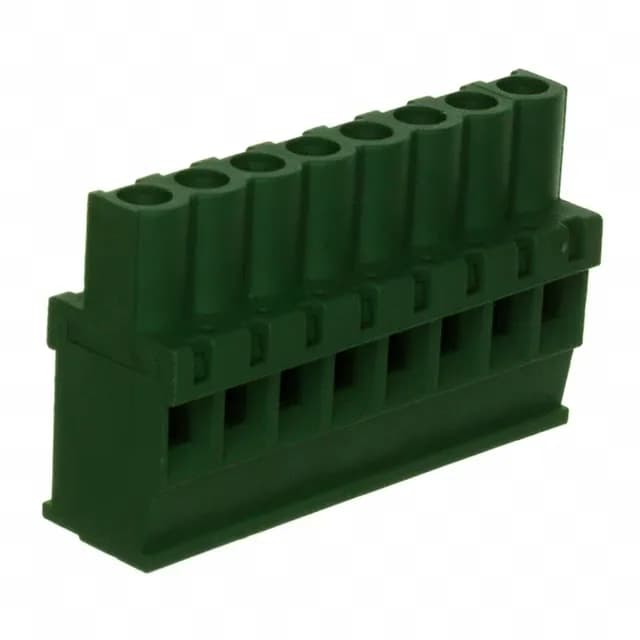

The 284041-8 is a Plug, Female Sockets type in a green polyamide housing.
The housing carries UL94 V-0 flammability rating. RoHS and REACH documentation is available from TE Connectivity AMP Connectors for the Buchanan series.
