TE Connectivity AMP Connectors 284047-3 — Pin Headers, Sockets & Housings

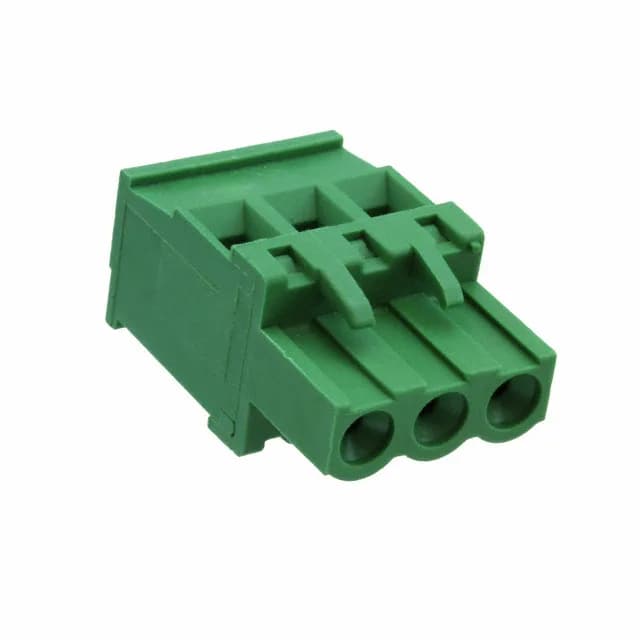

284047-3 TE Buchanan Plug, 3 Pos, 5.08mm, Screw Clamp

MPN284047-3
Active

TE Connectivity AMP Connectors Buchanan plug, order code 284047-3, 3 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw - rising cage clamp termination.

$0.9000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284047-3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284047-3 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry90°
Wire strip length6-7.5mm
Wire gauge or range - AWG12-30 AWG
Wire gauge or range - mm20.05-3mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284047-3 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.984\" (25.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesRetention Latches (Wire Side)
Screw sizeM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions3
Positions per level3
Contact mating finishTin

Product details

Plug identity and ratings

The 284047-3 is a 3-position plug from TE's Buchanan series, a free-hanging female socket connector with a single level of contacts at 0.200" (5.08mm) pitch. Rated 15 A at 300 V, the tin-plated phosphor bronze contacts suit signal-level and moderate power connections in industrial control panels.

Screw-clamp wiring and wire entry

Termination is screw - rising cage clamp, accepting 12-30 AWG (0.05-3mm²) solid or stranded wire with a strip length of 6-7.5mm.

Sourced per RFQ; availability confirmed at quote stage.

Frequently asked questions

What is the listed type and color for 284047-3?

The 284047-3 is a Plug, Female Sockets connector in green.

What compliance documentation does TE provide for 284047-3?

RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors upon request.
