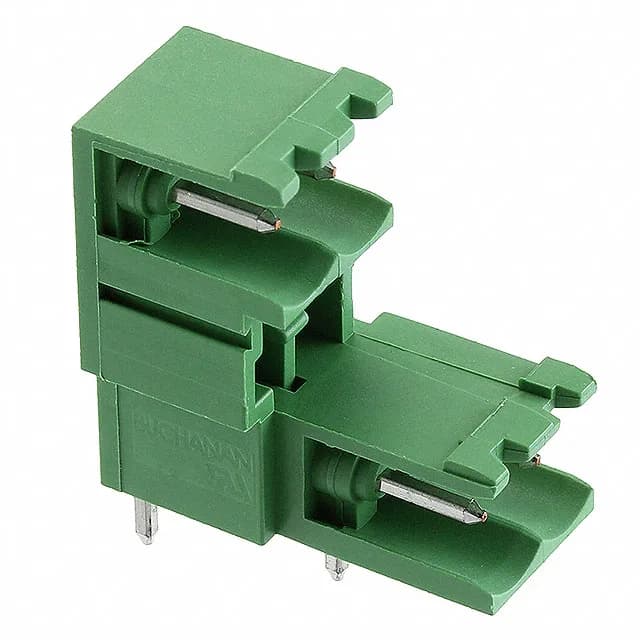

Dual-level shrouded header
The 284052-2: Rated 12 A per contact at 300 V, the tin-plated phosphor bronze contacts suit power distribution in equipment enclosures where the UL94 V-0 polyamide housing meets flammability requirements.
Position count and level layout
The 4 positions are arranged as 2 per level in a single row per level — the dual-level stack gives a 0.902-inch insulation height, keeping the lower-level pins accessible for board routing while the upper level mates with a separate plug.
