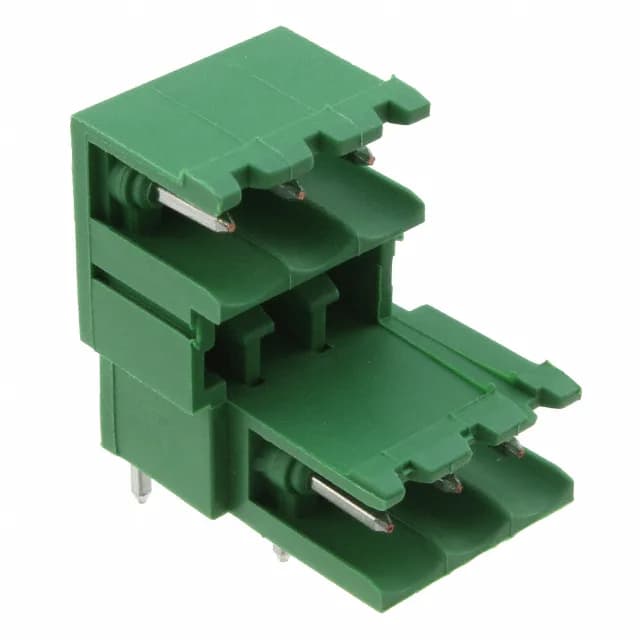

TE Connectivity AMP Connectors Buchanan header, order code 284053-3, 6 positions, 2 levels, 0.200" (5.08mm) pitch, 12 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.909\" (23.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 284053-3 is the 6-circuit, 2-level member of TE's Buchanan shrouded header line, designed for wire-to-board termination in terminal block applications.
Sourced per RFQ against the BOM quantity; lead time confirmed at quote.
The 284053-3 is a Header, Male Pins, Shrouded (2 Side) from the Buchanan series by TE Connectivity AMP Connectors.
