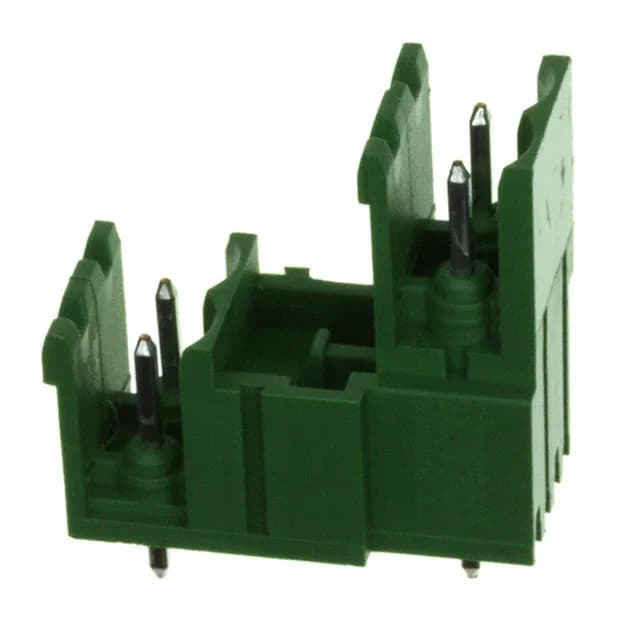

TE Connectivity AMP Connectors 284056-2
MPN284056-2
Active
$1.3900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.902\" (22.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 2 |
| Contact mating finish | Tin |
