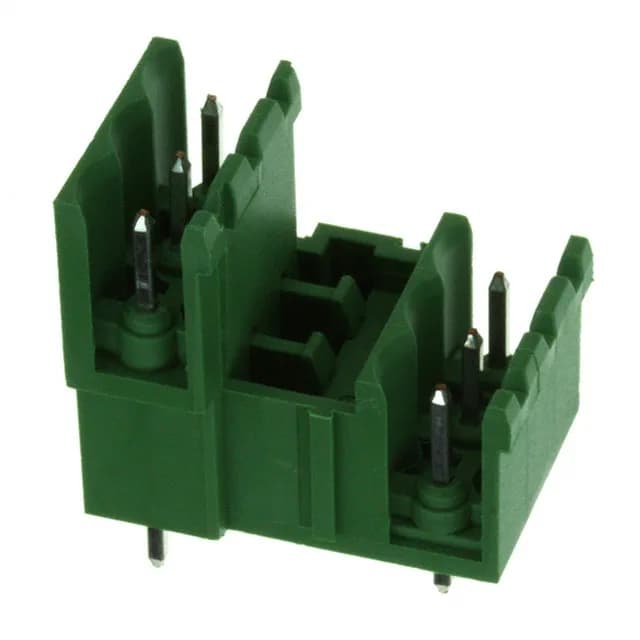

TE Connectivity Buchanan header, order code 284056-3, 6 positions, dual level, 5.00 mm pitch, 12 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.902\" (22.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 284056-3 is the 6-circuit, 2-level member of TE's Buchanan shrouded header line, with 3 positions per level. Rated 12 A at 300 V with tin-plated mating contacts, the through-hole vertical header carries a UL94 V-0 polyamide housing and operates from -40°C to 110°C.
