Two-level layout, right-angle exit

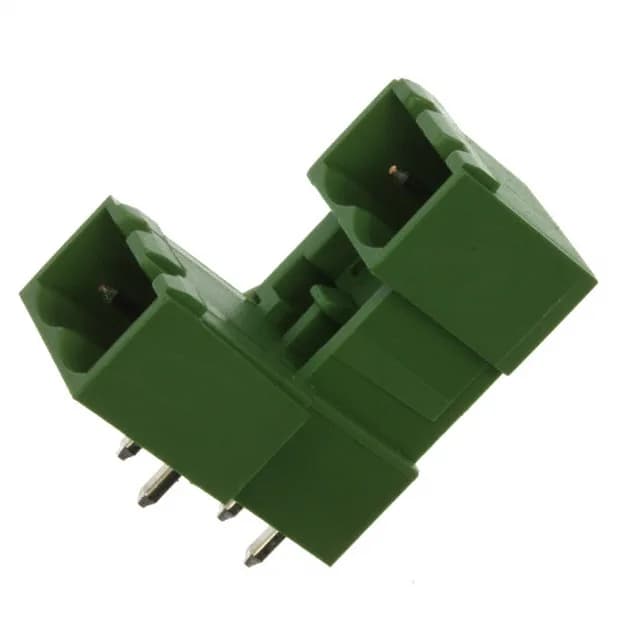

The 284061-2 is the 4-position, dual-level member of the TE Buchanan shrouded header line, with 2 positions per level. Rated 12 A at 300 V with tin-plated mating contacts, it terminates through-hole right-angle and carries a UL94 V-0 PA66 housing.
Position count and level stacking
The 284061-2 carries 4 positions across 2 levels at 0.200" (5.08 mm) pitch — the same pitch and footprint used across the Buchanan series, so the board layout stays consistent when scaling to higher or lower position counts.
