8-position, dual-level Buchanan header

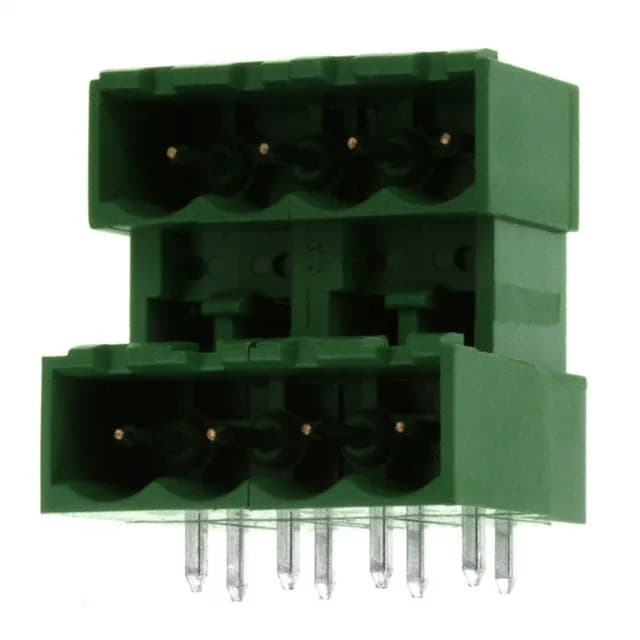

The 284061-4 is the 8-position, dual-level member of TE Connectivity's Buchanan shrouded header line, with 4 positions per level at 0.200" (5.08mm) pitch. Rated 12 A at 300 V with tin-plated mating contacts, it mounts through-hole right-angle and terminates via solder.
Level count and position layout
The 284061-4 carries 8 positions across 2 levels (4 per level) at 0.200" pitch — the dual-level arrangement doubles the circuit density per board edge compared to a single-level 8-position header at the same pitch.
