12 A, 0.200" Pitch, Right-Angle Header for Terminal Block Interfaces

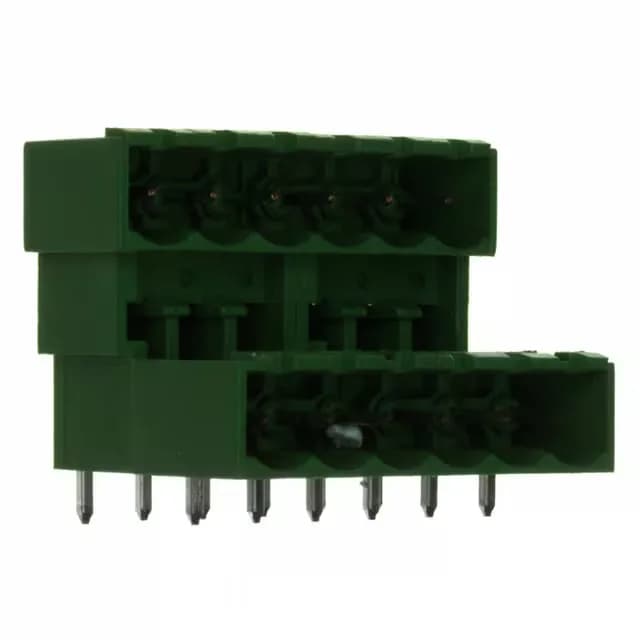

The 284061-6: This is a 12-position, 2-level shrouded header from TE's Buchanan series, designed for mating with pluggable terminal blocks. At 12 A per contact and 300 V rating, it handles typical industrial control and power distribution signals without derating at room ambient. The shrouded housing with 4-side protection prevents accidental shorting between adjacent pins during mating or probing.
Two-Level Stack: 6 Positions per Level for Dense Wiring
With 6 positions per level and an insulation height of 0.902" (22.90 mm), this header stacks two rows of terminals vertically. That gives you 12 circuits in a single connector body, reducing board space compared to two separate single-level headers. The interlocking side feature lets you gang multiple headers side-by-side for more positions without gaps.
