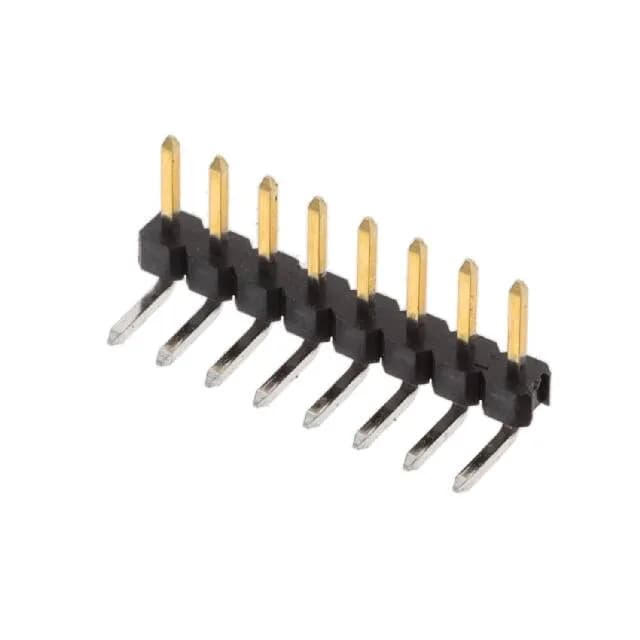

TE Connectivity AMPMODU series, 2842110-8, 8-position unshrouded breakaway header, 2.00 mm pitch, right-angle through-hole, gold-plated male pins, rated 2 A at 125 VAC/DC.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The mating surface carries a gold flash at 3.94 µinch (0.100 µm) over copper alloy — a light plating grade that resists oxidation through several dozen mating cycles.
It is ROHS3 compliant.
The key difference: 1376779-2 is rated 3 A per contact (vs 2 A) and carries a thicker 8.00 µinch gold mating finish (vs 3.94 µinch), making it the better choice for higher-current or more frequent mating cycles.
The pitch is 2.00 mm and it has 8 positions in a single row, all loaded.
Availability and current pricing confirmed at quote time.
