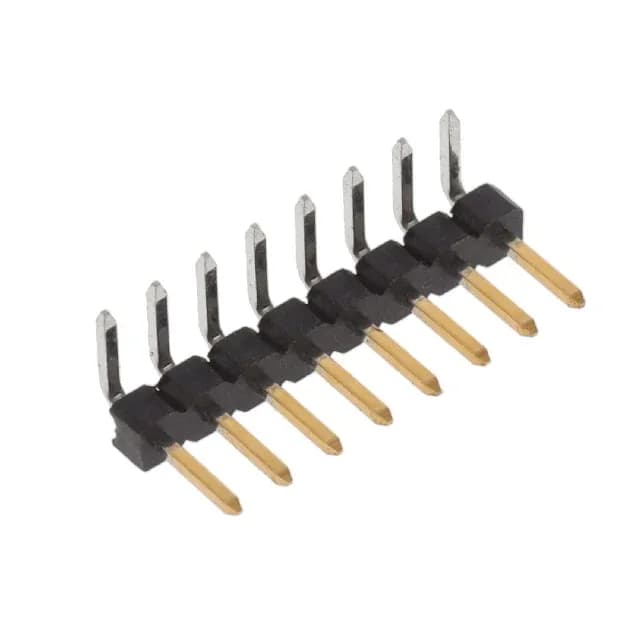

TE Connectivity AMPMODU breakaway header, 2842112-8, 8 positions, single row, 2.00mm pitch, right-angle through-hole, gold-plated male pins, unshrouded, rated 2A at 125VAC/DC.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2842112-8: The post finish is 78.7 µin tin, compatible with standard wave-solder processes.
Through-hole, right-angle mounting with a 0.110-inch (2.79 mm) solder tail. The unshrouded design means the header sits flush against the board edge, with a mating pin length of 0.157 inches (4.00 mm) — enough for standard IDC or crimp receptacles. Insulation height is 0.059 inches (1.50 mm), keeping the profile low on the board.
The peer 1-1871673-2 is a shrouded, dual-row header with a wider 2.50 mm pitch and tin-plated contacts — it is not a direct pin-compatible replacement due to different pitch and row count.
