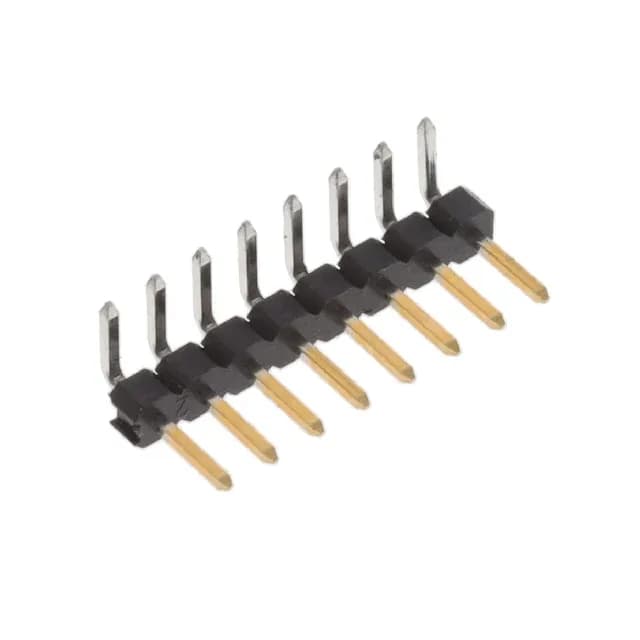

TE Connectivity AMPMODU, 2842114-8, 8-position single-row unshrouded header, 2.00 mm pitch, right-angle through-hole, gold-plated male pins, rated 2 A per contact at 125 VAC/DC.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The 1376779-2 carries a higher current rating (3 A vs 2 A) and thicker gold plating (8.00 µinch vs 3.94 µinch), making it a better fit for applications needing a few more amps or more mating cycles — but it ships in a box rather than tube packaging.
The mating pitch is 0.079" (2.00 mm), single-row, 8 positions all loaded.
The 1376779-2 is the closest functional peer — same 8 positions, 2.00 mm pitch, unshrouded, but rated 3 A with thicker gold plating (8.00 µinch vs 3.94 µinch).
