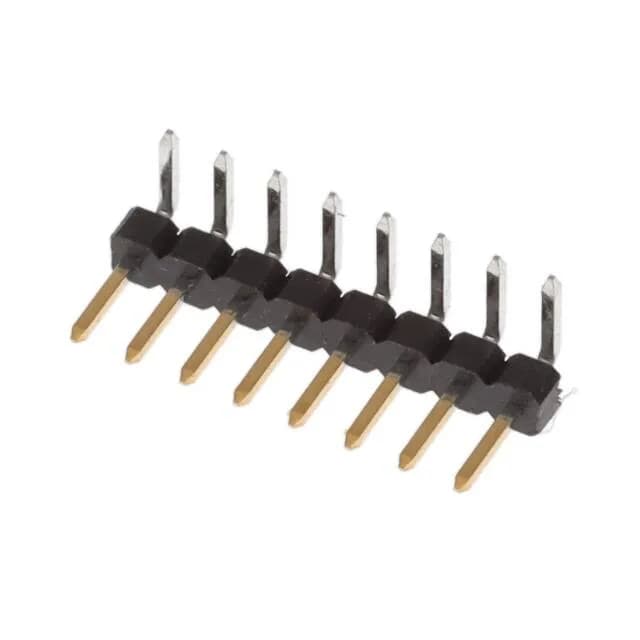

TE Connectivity AMP Connectors AMPMODU, 2842124-8, Board to Board Header, Breakaway, 8 Positions, 2.00mm Pitch, Through Hole, Right Angle, Gold Mating Finish, 2A, 125VAC/DC, -40°C~125°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 125 VAC/DC voltage rating covers typical signal-level circuits; the 2 A per-contact current is appropriate for low-power signal or control lines, not power distribution.
Yes, the 2842124-8 is ROHS3 compliant per the manufacturer's listing.
