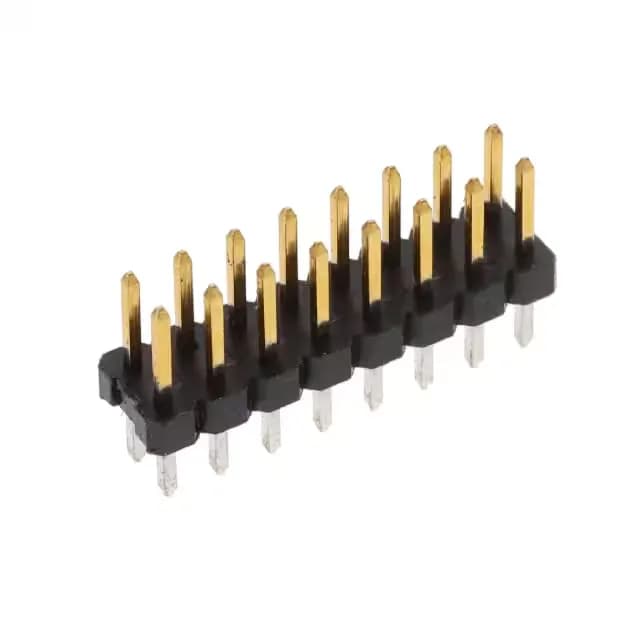

2842126-8 TE AMPMODU 16-Pin 2.00 mm Unshrouded Header

MPN2842126-8
Active

TE Connectivity AMPMODU 2842126-8, Board to Board, dual-row unshrouded breakaway header, 16 positions, 2.00 mm pitch, through-hole solder termination, gold mating finish, 2 A per contact, UL94 V-0.

$1.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2842126-8 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating125VAC/DC
Current rating2A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialThermoplastic

All specifications

2842126-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.327\" (8.30mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating3.94µin (0.100µm)

Product details

Unshrouded headers leave the pins exposed after mating — there is no plastic wall around the contact area.

Current, Temperature, and Plating

The mating finish is gold at 3.94 µinch (0.100 µm) — this is a flash plating suited for moderate mating cycles (typically 50–100 cycles) in clean, dry environments. If the application sees frequent reconnects or lives in a corrosive atmosphere, a thicker gold option like the 8.00 µinch on sibling 1376779-2 would extend contact life. The post finish is tin at 78.7 µinch, which solders well into through-hole boards. The thermoplastic insulation material holds the pins in a 2.00 mm grid and keeps the assembly rigid during soldering.

The key difference is the mating gold thickness: 3.94 µinch on this part versus 8.00 µinch on the sibling. That thicker plating buys roughly double the mating cycle life. The sibling also ships in a box rather than a tube. Current rating on the sibling is 3 A versus 2 A here — a marginal gain that may matter if the per-contact load is tight.

Frequently asked questions

What is the mating connector for 2842126-8?

As an unshrouded header, it mates with any AMPMODU 2.00 mm pitch receptacle that matches the 16-position dual-row layout. The mating half must provide its own alignment and retention since this header has no latch or shroud.

How does 2842126-8 differ from the alternative 1376779-2?

Both are 16-position dual-row unshrouded headers on 2.00 mm pitch. The main difference is the gold plating thickness on the mating pins: 3.94 µinch on this part versus 8.00 µinch on 1376779-2. The sibling also carries a 3 A per-contact rating versus 2 A here, and ships in a box rather than a tube.
