TE Connectivity AMP Connectors 2842127-7 — Pin Headers

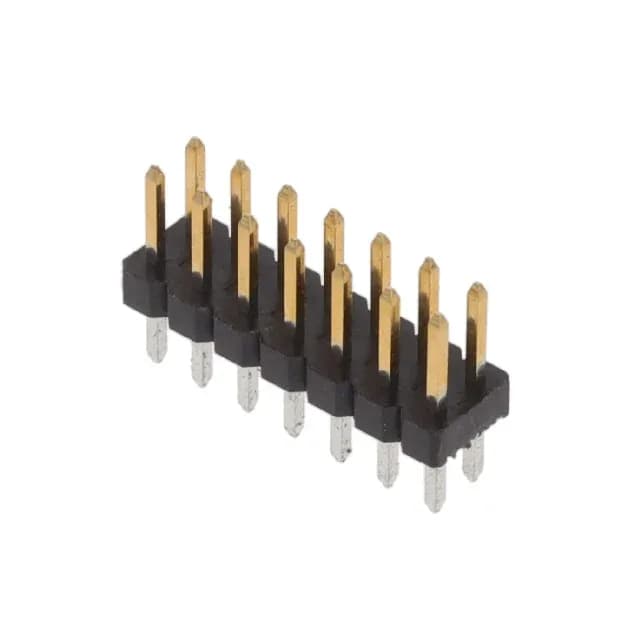

2842127-7 TE AMPMODU 14-Pin 2mm Header, Gold, Active

MPN2842127-7
Active

TE Connectivity AMPMODU, 2842127-7, 14-position dual-row unshrouded breakaway header, 2.00 mm pitch, through-hole solder termination, gold-plated mating contacts, tin-plated posts, UL94 V-0 black thermoplastic housing.

$2.1100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2842127-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2842127-7 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating125VAC/DC
Current rating2A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialThermoplastic

All specifications

2842127-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.327\" (8.30mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

2.00 mm Pitch, 14-Position Breakaway Header

This is the pitch a layout engineer checks first for routing density and footprint compatibility. The tin-plated posts (78.7 µinch) are the solder-tail interface — the gold/tin split means the contact interface is corrosion-resistant while the solder joint uses a standard tin finish.

Board-to-Board Fit and Termination

This is a through-hole solder header with a 0.110-inch (2.79 mm) post length — it sits flush through the PCB and is wave-soldered on the bottom side.

Frequently asked questions

What is the mating connector for 2842127-7?

This is a male pin header. It mates with a 2.00 mm pitch dual-row receptacle from the AMPMODU series — typically a socket housing with crimp terminals or a pre-loaded IDC receptacle. The unshrouded pins accept any standard 2.00 mm pitch female connector.
