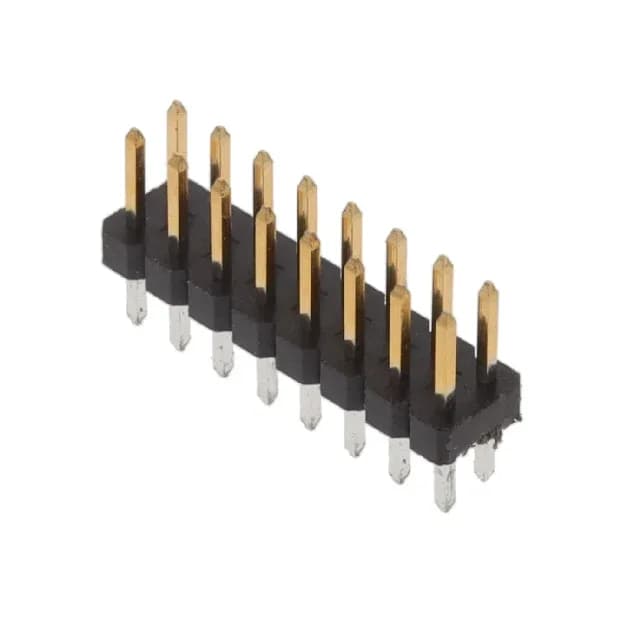

TE Connectivity AMPMODU header, order code 2842127-8, 16 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.327\" (8.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2842127-8 is the 16-circuit member of TE's AMPMODU breakaway header line, unshrouded, dual-row, at 2.00 mm pitch.
Within the AMPMODU 2.00 mm pitch breakaway header family, the 2842127-8's 16 positions sit between the 14-position 1379030-3 and the 20-position 1-1871673-2 — the pitch, dual-row layout, and unshrouded design are shared across the series, so match the position count to circuit count.
Within the AMPMODU series, any 16-position, dual-row, 2.00 mm pitch breakaway header with the same gold plating thickness and through-hole termination will be a direct footprint match. The base product number 2842127 covers the family; verify the contact finish thickness and overall length match your application.
