2.00 mm Pitch, 16-Position Breakaway Header

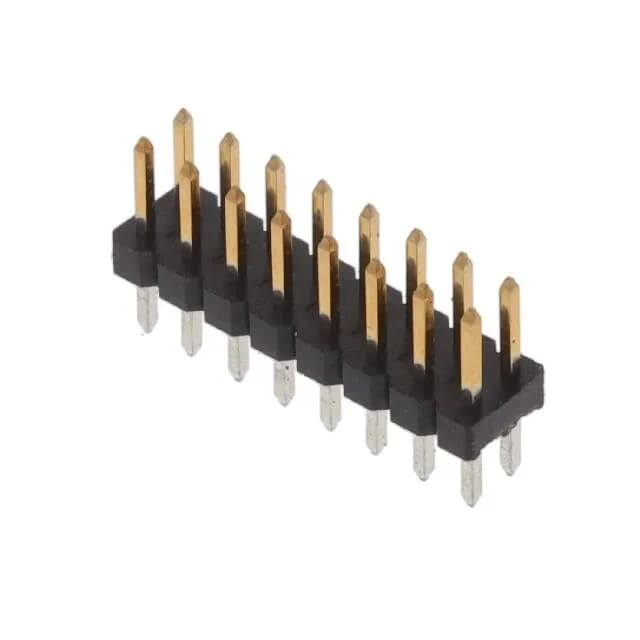

The 2842131-8 is a 16-position, dual-row breakaway header from the TE Connectivity AMPMODU series. The unshrouded design allows the header to be snapped to any even circuit count from 2 to 16, which is useful when a BOM calls for a non-standard position count and the assembler depopulates the carrier. The through-hole solder tails are tin-plated (78.7 µinch) for reliable wave-solder wetting. Operating temperature spans -40°C to 125°C, covering automotive underhood and industrial cabinet environments without derating.
Board Layout and Mating Fit
In a vibration environment, a secondary retention method (board lock or adhesive) should be considered. The header is supplied in a tube and includes a pick-and-place feature for automated assembly.
It is RoHS3 compliant. Availability and current pricing confirmed at quote time.
Comparing 2842131-8 with 2842131-4
The closest functional sibling is 2842131-4, which is identical in pitch (2.00 mm), row count (2), plating (gold mating, tin post), and housing material (UL94 V-0). The difference is position count: 2842131-8 carries 16 circuits; 2842131-4 carries 14 circuits. If the BOM calls for 14 positions, the 16-position part can be depopulated by snapping off two pins — but the 14-position sibling avoids the extra depopulation step and keeps the board footprint smaller.
