The 2842138-7: The 0.059 inch (1.50 mm) insulation height leaves room for trace routing under the header body on the top layer. Row spacing is also 2.00 mm, so the dual-row pattern is a 2×7 grid with symmetrical pitch in both axes — this simplifies the PCB footprint layout and keeps the board edge routing density predictable.

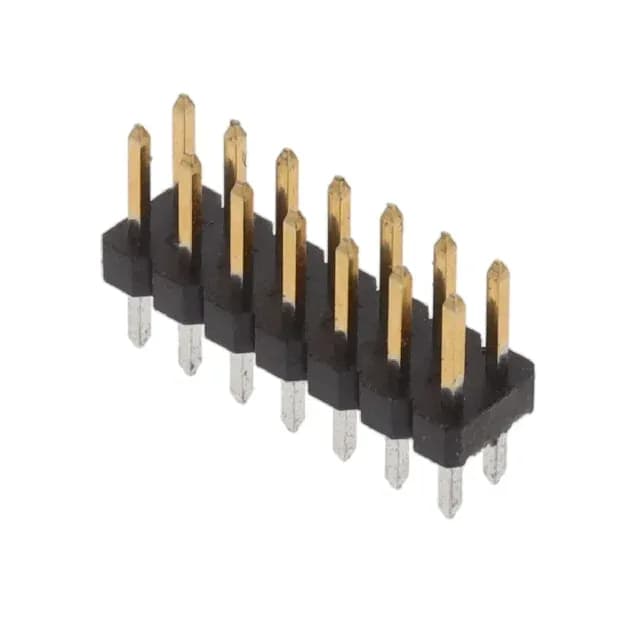

2842138-7 TE AMPMODU 14-Pin 2.00 mm Breakaway Header
MPN2842138-7
Active
TE Connectivity AMPMODU 2842138-7, 14-position dual-row unshrouded breakaway header, 2.00 mm pitch, through-hole solder termination, gold-plated mating contacts, rated 2 A at 125 VAC/DC.
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.327\" (8.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
Product details
Frequently asked questions
What is the closest functional second-source for 2842138-7?
Verify the board stack height and current requirements before substituting.
