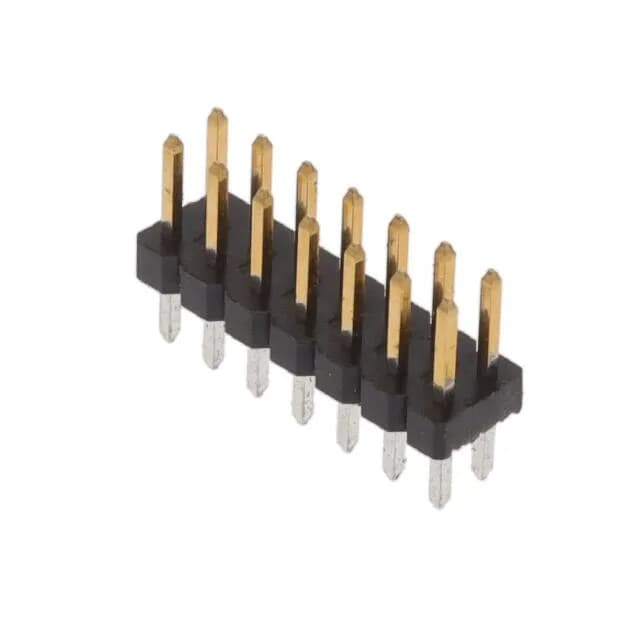

TE Connectivity AMPMODU 2842139-7, 14-position dual-row unshrouded breakaway header, 2.00 mm pitch, through-hole solder termination, gold-plated mating contacts, rated 2 A at 125 VAC/DC, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.327\" (8.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The closest active peer, 1376779-2, carries a 3 A / 250 V rating with a thinner 8.00 µinch gold mating finish. If your BOM needs higher current or voltage margin, 1376779-2 is the functional step-up; the 2842139-7 stays in the lower-power signal range.
ROHS3 compliant.
Sourced to order against your BOM quantity; availability and current pricing confirmed at quote time.
