Board Layout Fit: 2.00 mm Pitch, 10 Positions, Dual Row

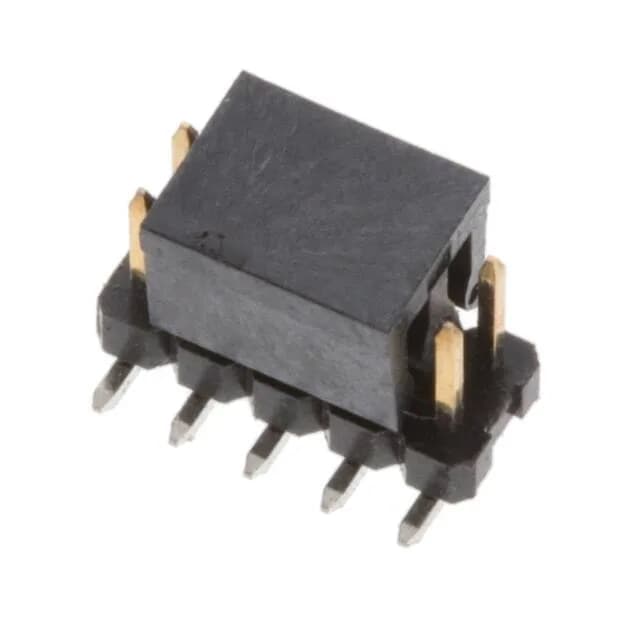

The 2842142-5: The 0.157 inch (4.00 mm) mating pin length sets the stack height for board-to-board mezzanine applications. All 10 positions are loaded, so you get the full pin count out of the box — no snapping needed unless you're designing a custom variant.
Surface Mount Termination and Pick-and-Place Ready
Surface mount termination with tin-plated solder tails (78.7 µinch) — the tin ensures good wetting during reflow. The header is marked as Pick and Place compatible, which means it ships on Tape & Reel or Cut Tape for automated assembly.
This is a male pin header — it mates with any standard 2.00 mm pitch female socket or receptacle from the AMPMODU series or compatible third-party sources. The square pin shape (copper alloy) mates with standard female terminals for a gas-tight connection.
