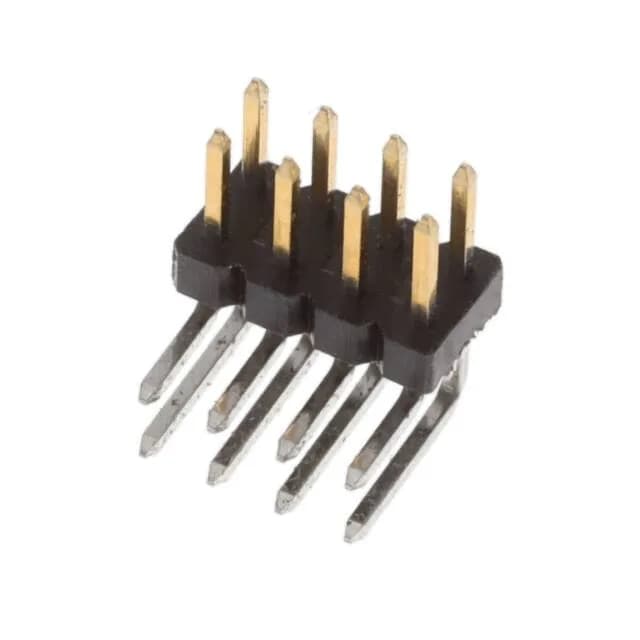

2.00 mm Pitch, 8-Position Breakaway Header
Its 2.00 mm pitch and 2.00 mm row spacing set a compact board footprint — the 0.079" pitch demands matched PCB land patterns for reliable solder joints.
Mating contacts are gold-plated with 3.94 µinch (0.100 µm) thickness. This flash gold layer resists corrosion in moderate environments and supports occasional mating cycles — not for high-cycle field-service duty, but adequate for board-level interconnects that mate once or a few times. The thermoplastic housing carries UL94 V-0 flammability rating — required for equipment inside enclosures where flame spread must be contained.
