2.00 mm Pitch Breakaway Header — 10 Circuits, Right-Angle

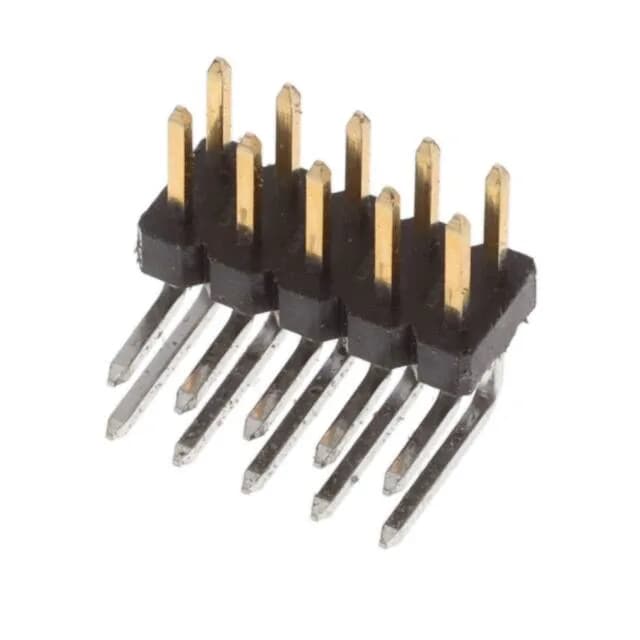

The 2842150-5 is a 10-position, dual-row breakaway header from the TE AMPMODU series. Gold mating finish at 3.94 µinch over copper alloy provides moderate corrosion resistance for controlled environments with limited mating cycles — typical for signal-level interconnects in industrial control or test equipment.
Mating and Termination — Unshrouded, Solder Tail
Through-hole solder termination with a 2.79 mm post length (0.110") — the tail protrudes through the PCB for wave or hand soldering, with a 4.00 mm mating pin length (0.157") for contact wipe.
