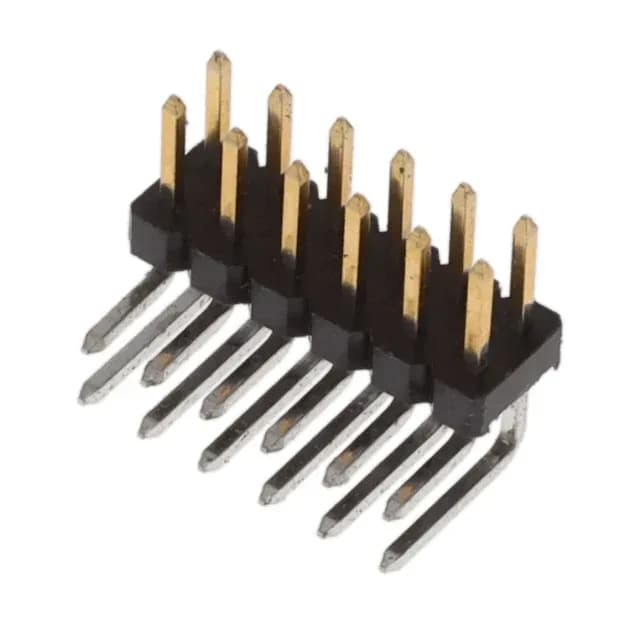

TE Connectivity AMPMODU breakaway header, order code 2842150-6, 12 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold mating finish, through-hole right-angle, solder termination.
TE AMPMODU 2842150-6 Header, 12 Pos, 2.00mm, Gold
MPN2842150-6
Active
TE Connectivity AMPMODU breakaway header, order code 2842150-6, 12 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold mating finish, through-hole right-angle, solder termination.
$1.6000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
