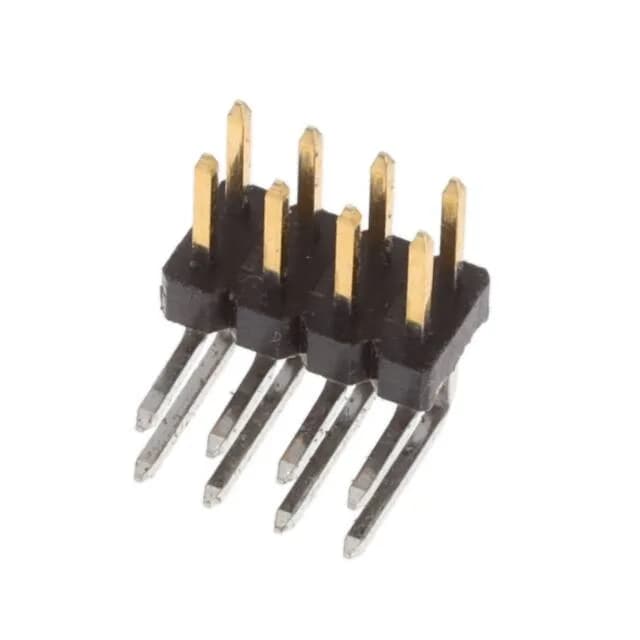

TE Connectivity AMPMODU, Board to Board, Header, Breakaway, 8 Positions, 2.00 mm Pitch, Through Hole, Right Angle, Gold Mating, 2 A, 125 VAC/DC
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2842151-4 is an 8-position, dual-row breakaway header from the TE AMPMODU series. The unshrouded design keeps the profile low — insulation height is 1.50 mm — but offers no keying, so the mating half must be oriented correctly. The post finish is tin, 78.7 µinch, which solders cleanly into plated through-holes.
ROHS3 compliant.
It is a dual-row, 8-position header with all positions loaded. The pinout follows the standard 2.00 mm grid — row spacing is also 2.00 mm.
