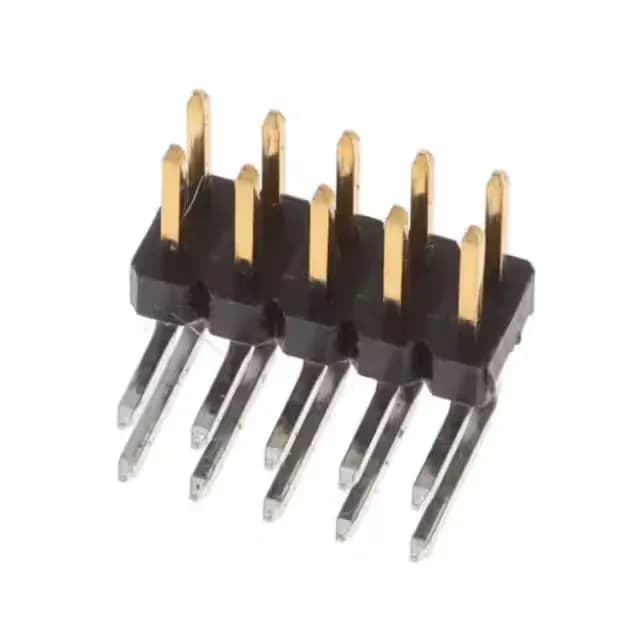

TE Connectivity AMPMODU, 10-position, 2.00 mm pitch, right-angle, through-hole, unshrouded breakaway header, male pin, gold mating finish, 2 A, 125 VAC/DC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Compared to the sibling 2842150-4 (8 positions, 3.94 µinch gold), this part carries two more circuits and a thicker gold layer, which improves corrosion resistance and cycle life in humid or industrial environments.
It is ROHS3 compliant and available for order.
2842151-5 is available to order through our distribution channel. Submit an RFQ for current pricing and lead time — we source it against your BOM quantity.
The 2842150-4 is a direct sibling: same 2.00 mm pitch, dual-row, right-angle, unshrouded breakaway header, but with 8 positions and a thinner 3.94 µinch gold mating finish. If you need 10 positions and the thicker gold, 2842151-5 is the correct choice.
