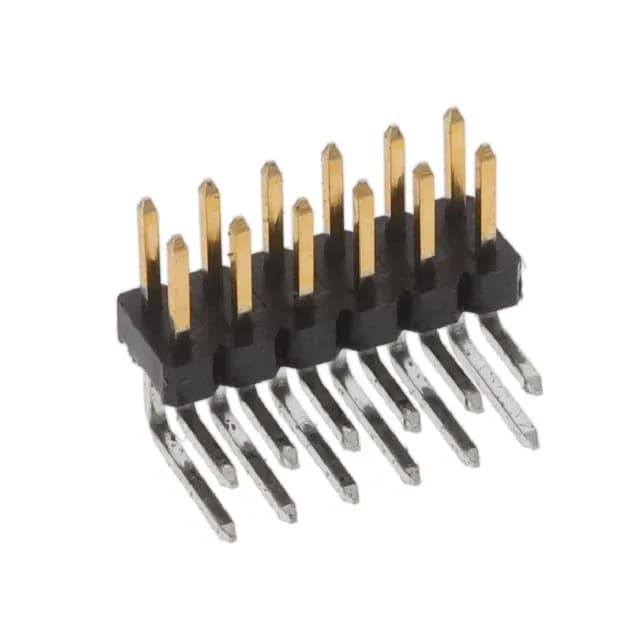

TE Connectivity AMP Connectors AMPMODU, 2842151-6, Board to Board, 12 positions, 2.00mm pitch, 2 rows, right-angle through-hole, unshrouded, male pin header, gold mating finish, 2A, 125VAC/DC, UL94 V-0, black thermoplastic.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The breakaway design allows depopulating positions — the header ships with all 12 positions loaded, but the snap-off grooves between positions let you trim it to a shorter length for a non-standard circuit count. This is useful for prototyping or when a single header must cover multiple BOM variants.
ROHS3 compliant per the current directive.
This is an unshrouded male pin header with 2.00 mm pitch, 12 positions, dual row. It mates with any 2.00 mm pitch female receptacle — typically an IDC socket or a crimp housing from the AMPMODU or compatible series. Confirm the receptacle's pitch, row spacing, and position count match before ordering.
Yes, it carries ROHS3 compliance status from TE Connectivity.
