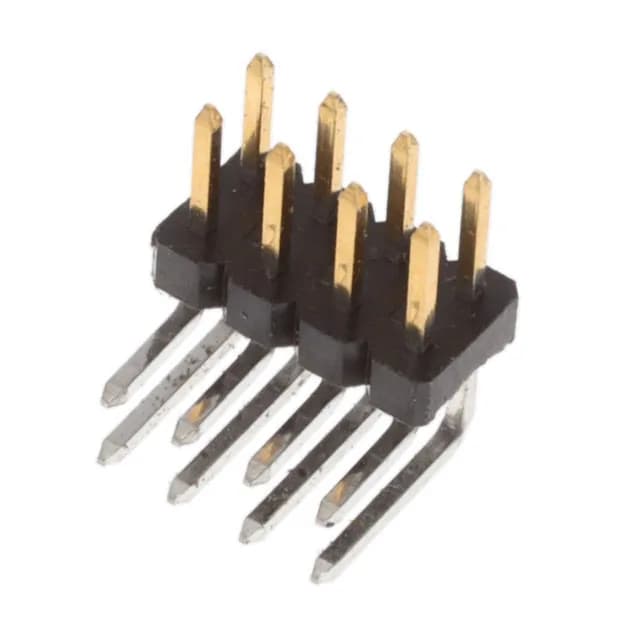

TE Connectivity AMPMODU series, 2842152-4, 8-position dual-row breakaway header, 2.00mm pitch, right-angle through-hole, gold-plated mating contacts, rated 2A per circuit at 125VAC/DC.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2842152-4: This 8-position, dual-row breakaway header from the AMPMODU series uses a 2.00mm pitch — tight enough for dense board-to-board routing but wide enough to keep per-contact current at 2A without thermal trouble.
This is a male pin header; it mates with a 2.00mm-pitch female receptacle from the AMPMODU series. The unshrouded design means the receptacle housing must provide its own alignment — typically a dual-row IDC socket or a crimp-style housing with a matching pitch.
