TE Connectivity AMP Connectors 2842154-8 — Pin Headers

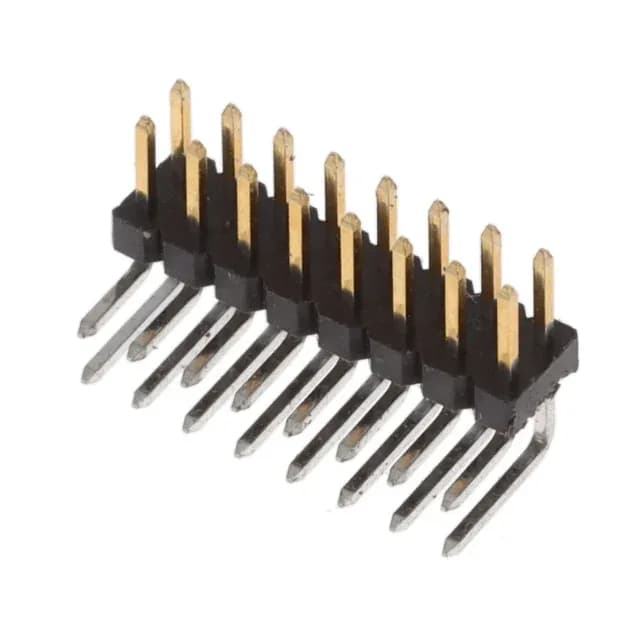

2842154-8 TE Connectivity AMPMODU Header, 16 Pos, 2.00 mm

MPN2842154-8
Active

TE Connectivity AMPMODU breakaway header, 16 positions, 2.00 mm pitch, dual-row, right-angle, through hole, unshrouded, gold-plated mating contacts, 2 A, UL94 V-0.

$2.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2842154-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2842154-8 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating125VAC/DC
Current rating2A
Operating temperature-40°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialThermoplastic

All specifications

2842154-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating3.94µin (0.100µm)

Product details

Board Fit and Routing

The 2842154-8: This keeps the header footprint compact: the insulation body stands 0.059 inch (1.50 mm) above the board surface, leaving room for other components under the mating connector. The breakaway construction lets you snap the header to the exact position count needed for the BOM — the 16-position version ships fully populated, but the same base part number supports shorter lengths if you break the scored sections during assembly. Pick-and-place compatible packaging (tube) suits automated assembly lines.

Frequently asked questions

What is the pin configuration of the 2842154-8?

Dual-row, 16 positions, all loaded. 2.00 mm pitch within and between rows. Male square pins, unshrouded, gold-plated mating surface.

What connector mates with the 2842154-8?

Any AMPMODU 2.00 mm pitch dual-row receptacle with 16 positions. The unshrouded header relies on the mating half for polarisation — verify the receptacle's keying and latch features match your application.
