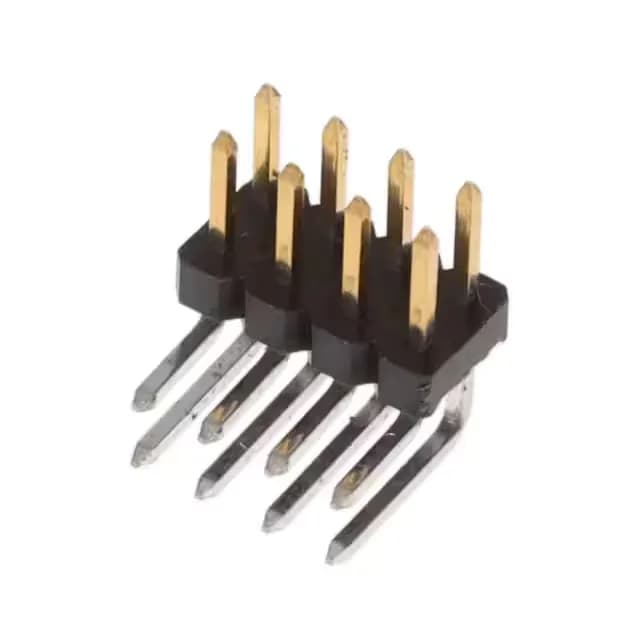

2.00 mm pitch, 8-position breakaway — board-edge signal interconnect
Unshrouded breakaway design — snap individual sections from the strip for odd-position builds; the push-pull fastening relies on the receptacle's latch, not a header shroud, so the mated pair is held by the housing lock alone.
Gold mating finish, 2 A per contact — signal duty, not power
125 VAC/DC voltage rating covers typical board-level signal rails (3.3, 5, 12, 24 V) with margin; the 0.157" mating contact length ensures full wipe before the receptacle latch seats.
Active production, sourced per BOM quantity
ROHS3 compliant; the copper alloy contacts and thermoplastic insulator meet the material restrictions for EU-market equipment. Supplied in tube packaging; the pick-and-place feature (flat top surface) allows vacuum-nozzle handling for automated board assembly.
Mating half and board-fit checklist
Mates with any AMPMODU 2.00 mm pitch dual-row receptacle housing that accepts 0.64 mm square pins — the unshrouded header relies on the receptacle's latch for retention, so confirm the mating housing has a locking ramp or TPA.
