Right-Angle Breakaway Header for Board-to-Board Stacking

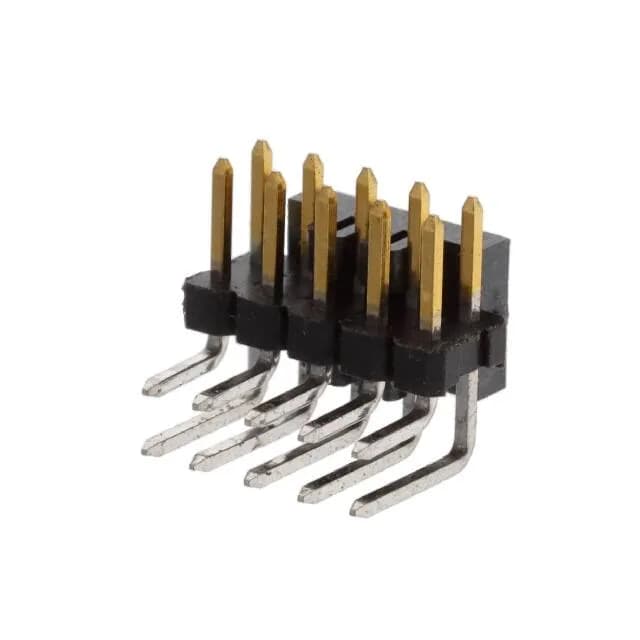

The 2842156-5: Unshrouded and breakaway, this header lets you snap to length if the BOM calls for fewer than 10 positions, though all positions are loaded here.
Contact Plating and Current Capacity
The tin tails solder cleanly into plated through-holes; the 2.00 µm (78.7 µinch) post thickness is standard for wave-solder wetting. Operating temperature spans -40°C to 125°C, so the header can sit in an automotive cabin or an industrial cabinet near a heat source. The UL94 V-0 thermoplastic housing won't propagate flame inside the enclosure.
Mounting and Board Fit
The 1.50 mm insulation height above the board means the plastic body sits low — the receptacle mates flush against it. Pick-and-place compatible packaging (tube) suits automated assembly lines.
