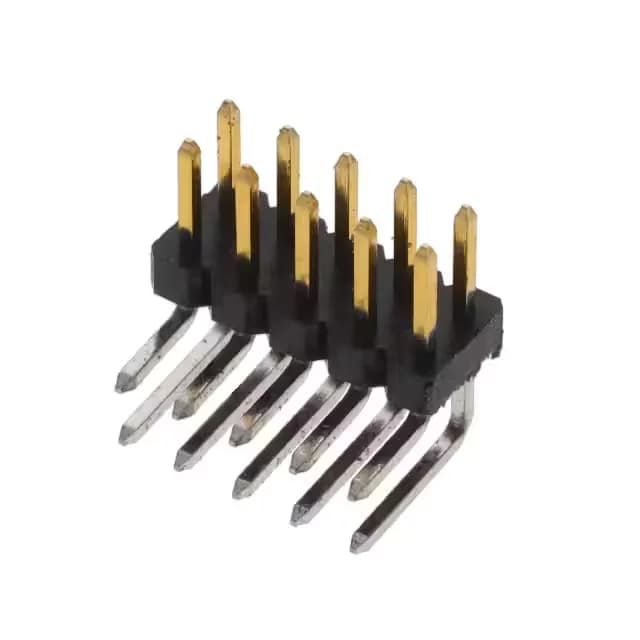

TE Connectivity AMPMODU, 2842162-5, 10 Position, 2.00mm Pitch, 2 Row, Right Angle, Through Hole, Unshrouded Breakaway Header, Gold Mating Finish, 2A, 125VAC/DC
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
2842162-5 is a 10-position, 2-row, unshrouded breakaway header from TE's AMPMODU series. Rated 2A per contact at 125VAC/DC, with a gold mating finish (3.94µin) over copper alloy pins. The gold flash keeps contact resistance low for signal paths, though the thin plating means this is best suited for moderate mating-cycle duty — not a high-cycling field-service connector.
