Board Layout Fit and Pinout
Current and Contact Rating
For repeated disconnect in a field-service application, the thin gold layer may wear through after several hundred cycles — budget a replacement if the assembly sees frequent unmate.

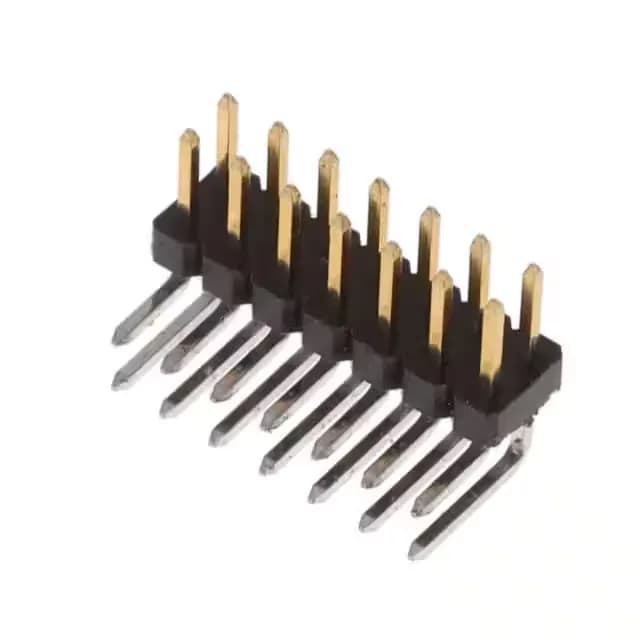

2842162-7 TE Connectivity AMPMODU Header, 14 Pos, 2.00mm
MPN2842162-7
Active
TE Connectivity AMPMODU, Header, Breakaway, 14 Positions, 2 Rows, 0.079" (2.00mm) Pitch, Through Hole, Right Angle, Gold Mating, Tin Post, UL94 V-0
$1.6400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
Product details
Frequently asked questions
Is 2842162-7 RoHS compliant?
Yes, ROHS3 compliant.
What is the pin configuration of 2842162-7?
14 positions in 2 rows, all positions loaded. Pitch is 0.079" (2.00 mm) both between positions and between rows.
