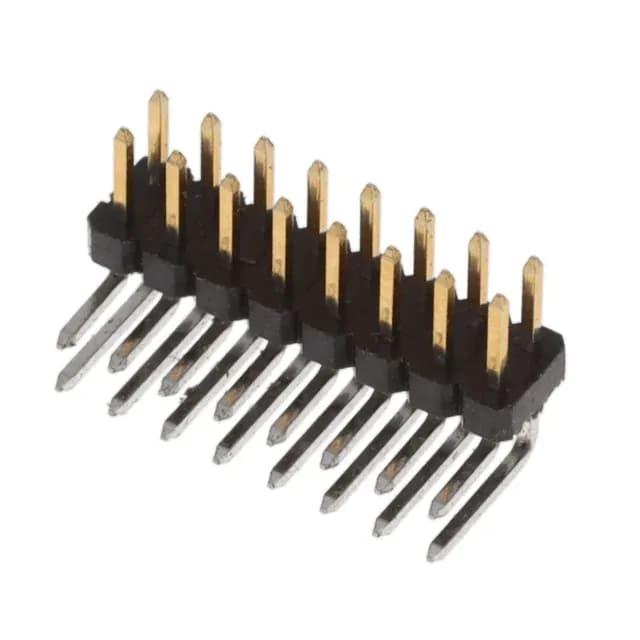

2.00 mm Pitch, 16-Position Dual-Row Breakaway Header
The 2842162-8: It is unshrouded and uses a push-pull fastening, making it a general-purpose board-to-board interconnect for signal-level circuits. The through-hole right-angle mounting orients the pin row perpendicular to the board, which helps in space-constrained enclosures where board-edge or mezzanine connections need a low z-height profile.
This unshrouded header mates with AMPMODU 2.00 mm pitch receptacles or IDC sockets that accept the 0.157 inch (4.00 mm) mating pin length. The dual-row layout with 2.00 mm row spacing gives a board footprint that is 6.00 mm wide (three pitch units) plus keep-out. The insulation height of 1.50 mm leaves clearance for component placement under the header body.
