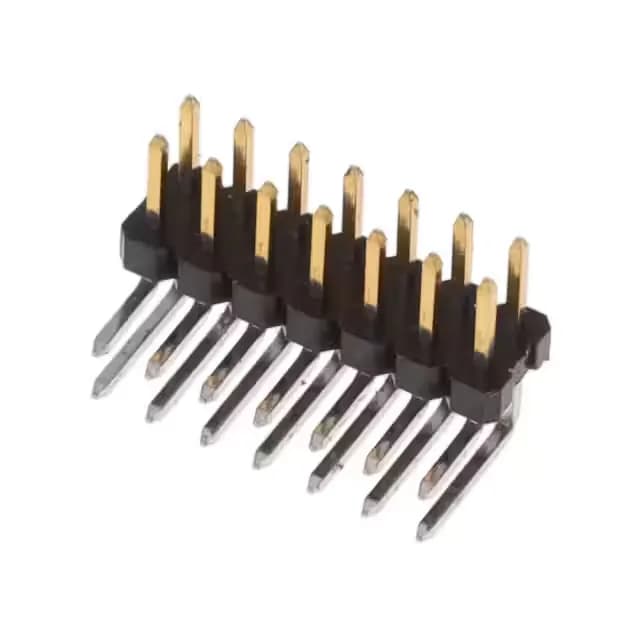

TE Connectivity AMPMODU, Header, Breakaway, 14 Positions, 2.00mm Pitch, Through Hole, Right Angle, Gold Mating Finish, 2A, 125VAC/DC, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2842163-7: The insulation height is only 1.50 mm, keeping the header low-profile above the board. Post length is 2.79 mm for solder-through; the mating pin length is 4.00 mm for receptacle engagement.
Housing is thermoplastic, rated UL94 V-0 — the connector won't propagate flame inside the equipment enclosure.
The pitch is 2.00 mm (0.079 inch), and the header has 14 positions in a dual-row layout. All positions are loaded.
Yes, the part is ROHS3 compliant. The solder tails are tin-plated, compatible with lead-free assembly.
The 2 A limit is per-circuit; total current depends on the number of active pins and ambient temperature.
Availability and current pricing confirmed at quote time.
