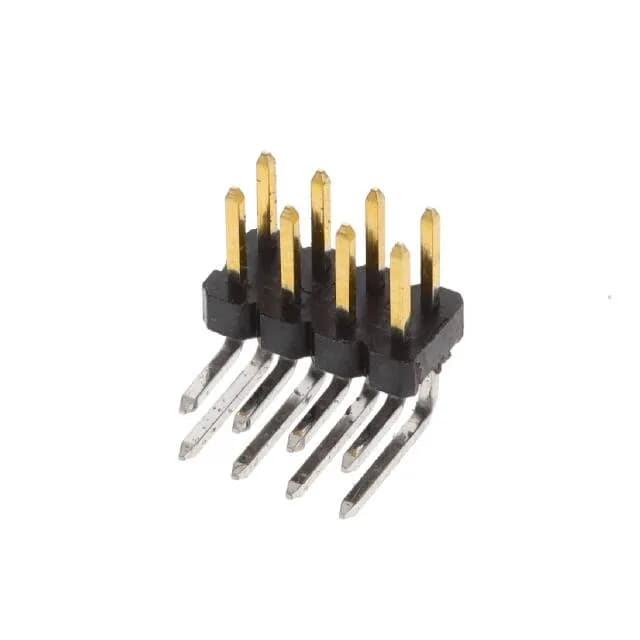

TE Connectivity AMPMODU, Header, Breakaway, 8 Positions, 2.00mm Pitch, Dual Row, Through Hole, Right Angle, Gold Mating Finish, 2 A, 125 VAC/DC
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Its 2.00 mm pitch and 2.00 mm row spacing set a compact footprint for parallel or mezzanine stacking, while the unshrouded profile keeps the z-height low — the insulation height is just 0.059" (1.50 mm).
The 0.110" (2.79 mm) solder tail length provides enough standoff for wave-solder fillet formation on standard 1.6 mm boards.
It is a dual-row header with all 8 positions loaded.
