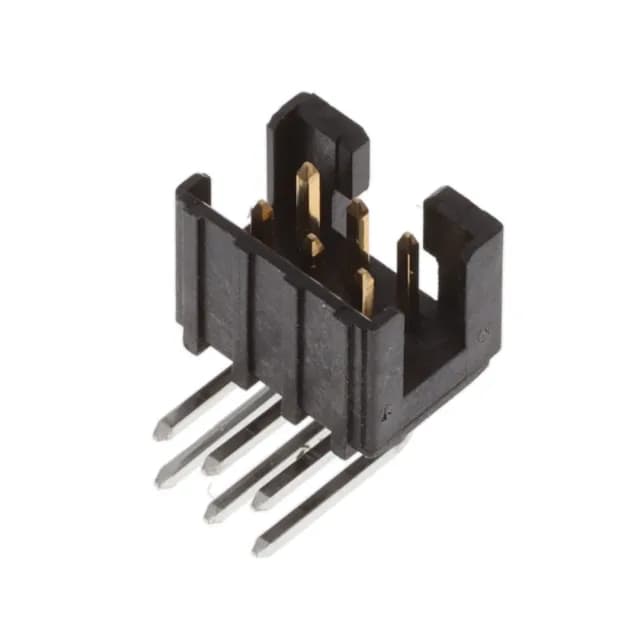

TE Connectivity AMP Connectors AMPMODU header, order code 2842166-6, 6 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.145\" (3.70mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The 2842166-6 is the 6-circuit member of TE's AMPMODU shrouded header line, configured for board-to-board or cable duty with a detent lock. Gold mating contacts rated 2 A at 125 VAC/DC, through-hole right-angle mounting, UL94 V-0 thermoplastic housing.
Full documentation is available through the distributor.
