TE Connectivity AMP Connectors 284391-7
MPN284391-7
Active

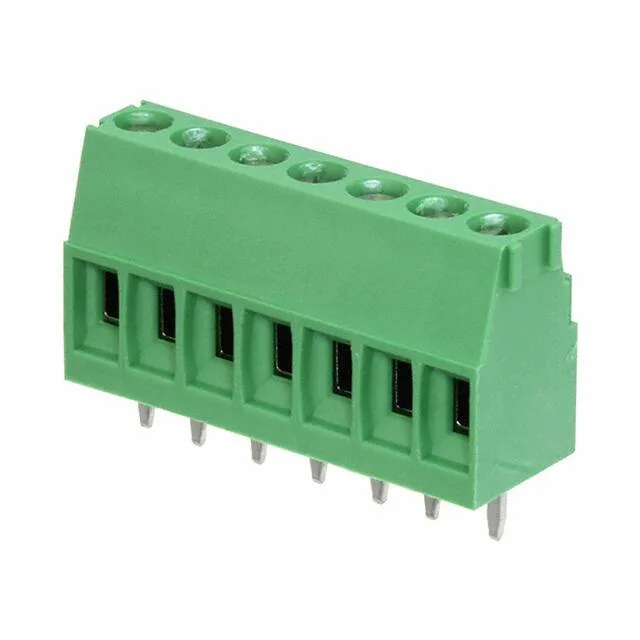

TERM BLK 7POS SIDE ENT 3.5MM PCB
$4.9Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 12 A |
| Wire gauge | 14-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Brass - Nickel Plated |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.25 Nm (2.2 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 7 |
