What This Terminal Block Does in a Panel

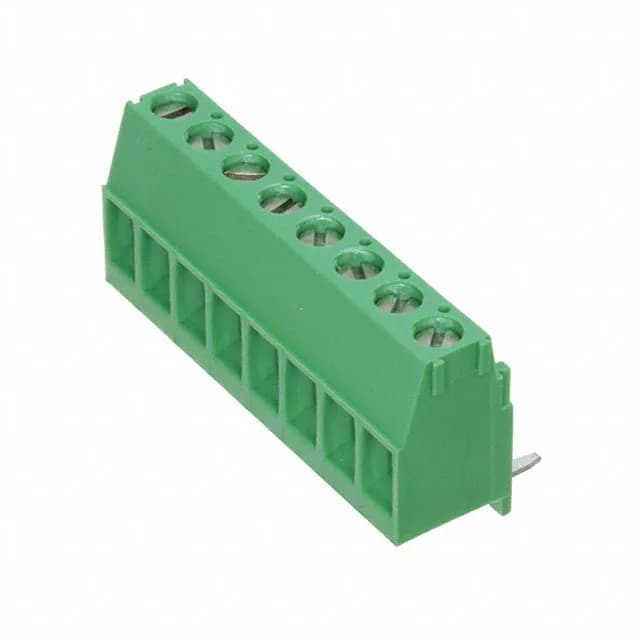

The TE Connectivity 284415-8 is an 8-position Buchanan series PCB-mount terminal block with a 0.150" (3.81mm) pitch, rated 12 A at 300 V. It terminates solid or stranded wire from 12 to 30 AWG using a screw-driven rising cage clamp — the clamp pulls the wire against a current bar rather than pinching it under the screw head, giving a gas-tight connection that doesn't loosen with thermal cycling. The green polyamide (PA66) housing carries a single level of positions, with wire entry from the top, vertical to the board. Side interlocking features let you key multiple blocks together into a continuous strip for multi-circuit distribution without extra hardware.
Sizing the Wire and Torque for the Connection
The 12 A per-position rating is the continuous current limit at the rated temperature; the 12-30 AWG wire range covers from a heavy power feed (12 AWG) down to a control signal (30 AWG). The M3 screw takes a torque of 0.25 Nm (2.2 Lb-In) — a quarter-turn past snug with a small screwdriver. Torque it, then scan it: a loose clamp in a rising-cage block shows up as a hot joint on a thermal camera. The brass contacts and clamp are tin-plated, which is fine for the rated current in a dry indoor panel; gold would add nothing here.
