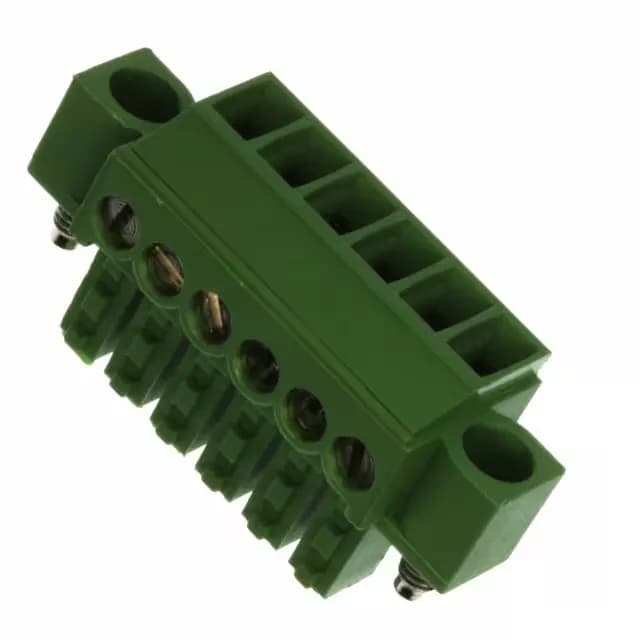

TE Connectivity Buchanan 284510-6, Plug, Female Sockets, 6 positions, 0.138" (3.50mm) pitch, screw - rising cage clamp termination, 11 A, 300 V, green housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M2 |
| Torque - screw | 0.31 Nm (2.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 284510-6: Rated 11 A at 300 V, the current is limited by the contact-to-wire interface and the housing temperature rise — stay within the 14-30 AWG wire range to maintain the rating.
The insulation height is 0.437" (11.10 mm), which sets the clearance to adjacent components in a dense panel layout.
The plug accepts 14-30 AWG (0.05-2 mm²) solid or stranded wire. Termination is via a screw - rising cage clamp with a specified torque of 0.31 Nm (2.7 Lb-In) and a strip length of 5-6 mm.
