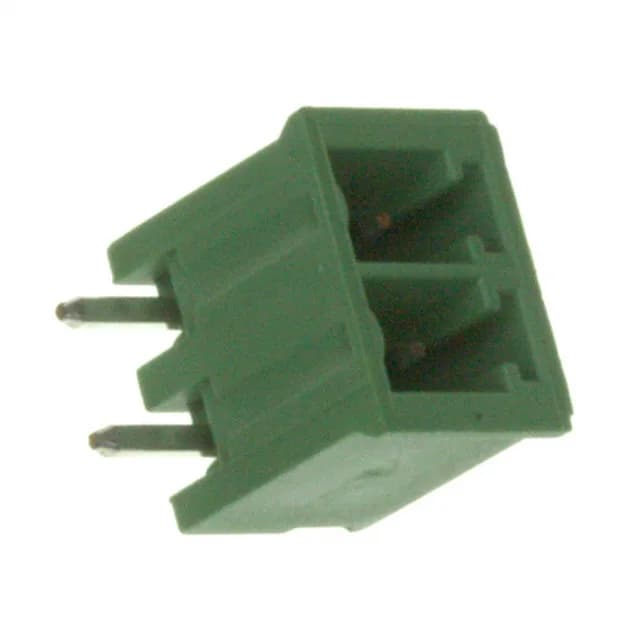

Buchanan 2-Position Right-Angle Header
The right-angle orientation (90°) routes the mated wire parallel to the board, which saves z-height in enclosures where the connector sits near the board edge.
Rated for 11 A at 300 V
UL current rating of 11 A and voltage rating of 300 V define the safe operating envelope for this header in equipment inside an enclosure requiring flame-rated materials (UL94 V-0 housing). The 2-position, single-level layout with 0.134" (3.40mm) contact tail length is a standard through-hole solder termination — the tail length suits typical PCB thicknesses from 1.6 mm to 2.4 mm.
