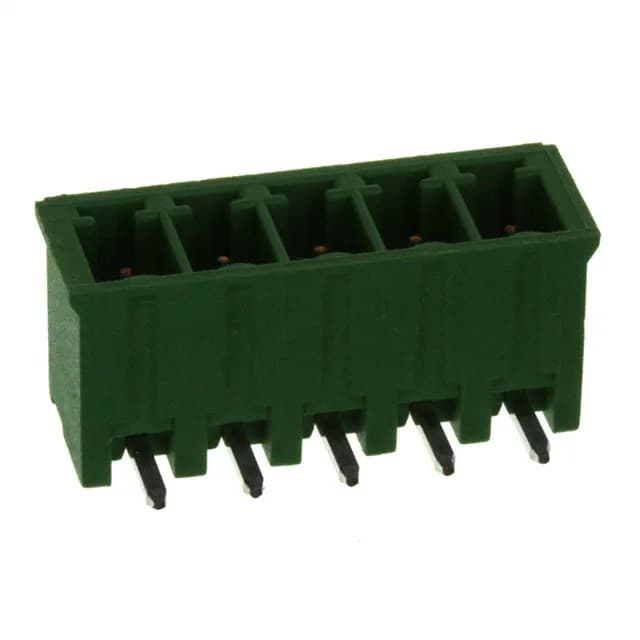

TE Connectivity Buchanan header, order code 284513-5, 5 positions, single level, 3.81 mm pitch, 11 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.287\" (7.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 284513-5 is the 5-circuit member of TE's Buchanan shrouded header line, a single-level right-angle through-hole part with a 3.81 mm pitch. Tin-plated phosphor bronze contacts carry 11 A at 300 V, and the PA66 housing holds a UL94 V-0 flammability rating.
The 284513-5 is an active-production part from TE Connectivity AMP Connectors. Availability is confirmed at RFQ; the part ships in bulk packaging.
The housing material is PA66 rated UL94 V-0. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors; consult the product drawing or contact the supplier for specific certificates.
