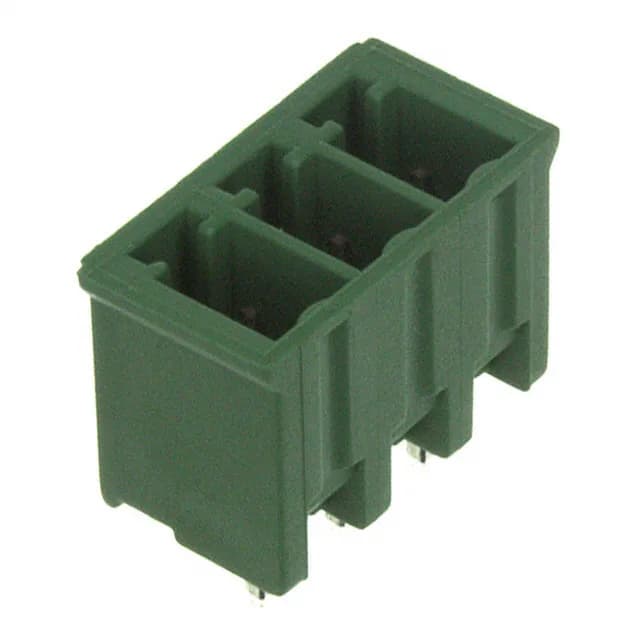

TE Connectivity AMP Connectors Buchanan header, order code 284517-3, 3 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
TE Connectivity 284517-3 Header, 3 Pos 3.81mm
MPN284517-3
Active
TE Connectivity AMP Connectors Buchanan header, order code 284517-3, 3 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
$0.9300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
How can I check pricing and availability for the 284517-3?
Pricing and stock are confirmed at RFQ against the BOM quantity. Submit a request through the distributor for current lead time.
What is the connector type and color of the 284517-3?
The 284517-3 is a Header, Male Pins, Shrouded (4 Side) in green.
