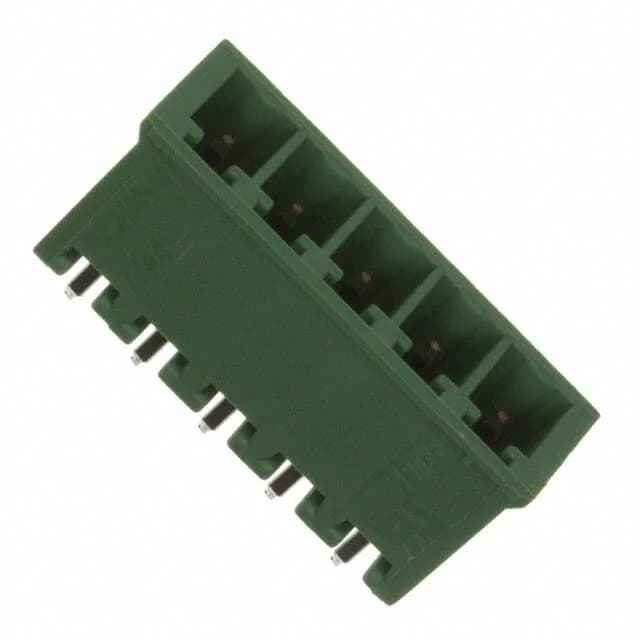

TE Connectivity AMP Connectors Buchanan header, order code 284517-5, 5 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, through-hole vertical, solder termination, tin-plated phosphor bronze contacts.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 284517-5 is the 5-position member of TE's Buchanan shrouded header line, a through-hole vertical male pin header with full 4-side shrouding.
The 0.362" (9.20mm) insulation height provides clearance above the board surface for mating with wire-to-board plug housings.
It is a Header, Male Pins, Shrouded (4 Side) — a through-hole vertical header with a shroud on all four sides for keyed mating.
RoHS and REACH compliance documentation is available through the product datasheet.
