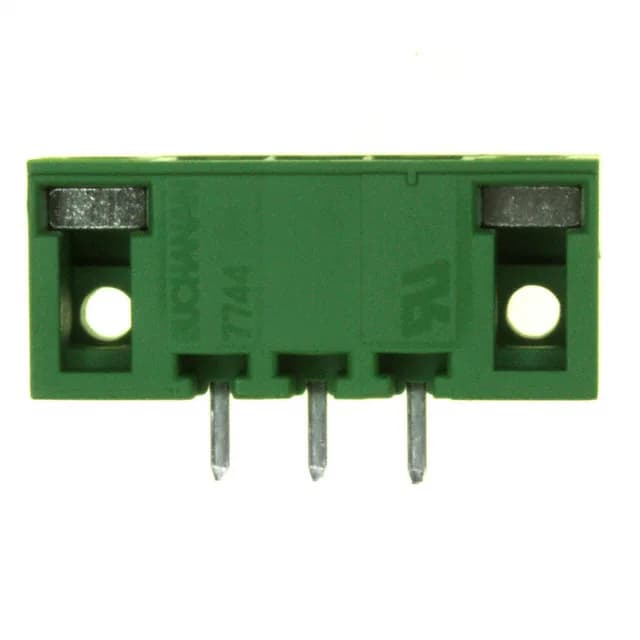

TE Connectivity AMP Connectors Buchanan header, order code 284519-3, 3 positions, single level, 3.81 mm pitch, 11 A, 300 V, through-hole vertical, solder termination, tin-plated mating contacts, shrouded (4 side).
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 284519-3: The 3.81 mm pitch and single-level layout match the Buchanan terminal block footprint for wire-to-board power distribution.
The 284519-3 carries three positions on a single level at 3.81 mm pitch, matching the Buchanan series layout where the position count per level equals the total circuit count.
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
